Advanced Autosports Custom Radiator

$675.00

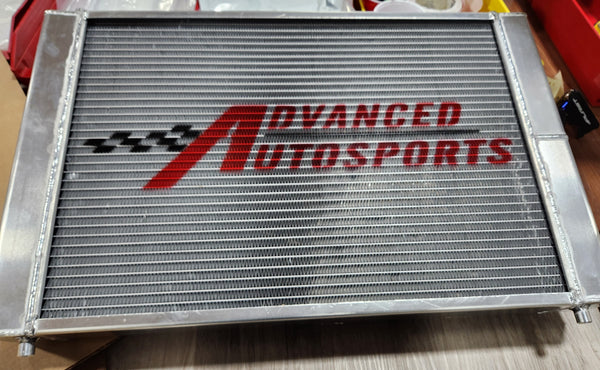

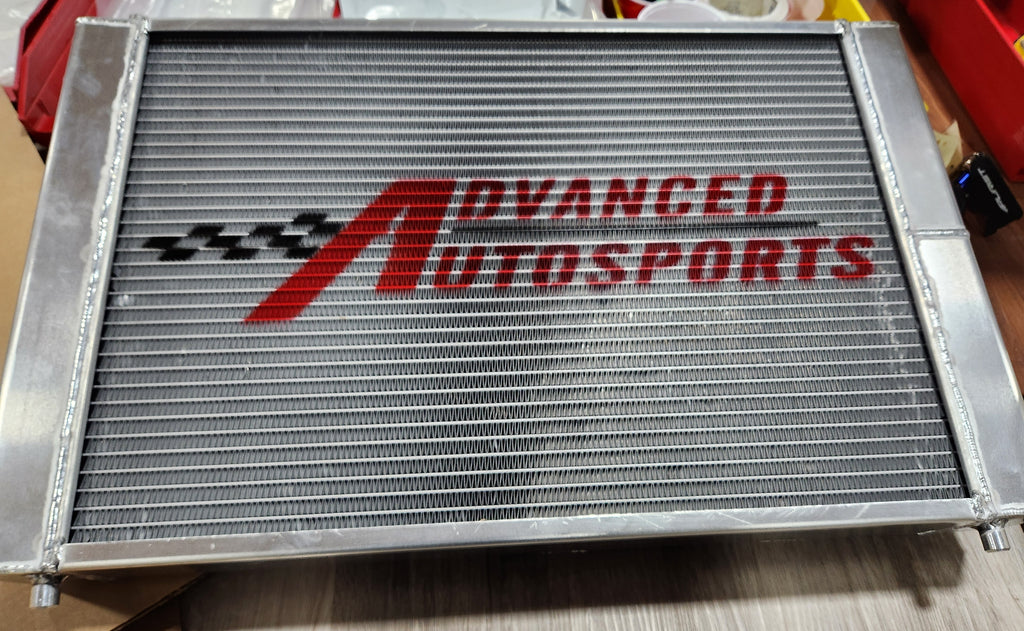

Advanced Autosports is proud to announce the availability of our new design Spec Miata Radiator for NB only. After a year of testing and development, we feel we have achieved the best radiator on the market at a fair price. The double pass design is the most efficient available.

The heart of any radiator is the core. The Advanced Autosports Spec Miata Radiator uses a Visteon racing core. The same core used by Ford Racing in their NASCAR and IMSA efforts. In fact this radiator is built in the same shop that builds the Ford racing custom radiators.

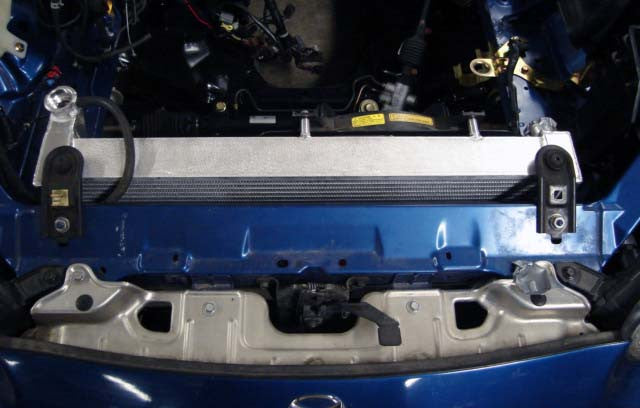

The side tanks are designed to fit snuggly between the frame horns, no need to pack with foam or tape. The radiator is taller than the stock radiator. Extending down to the lower belly pan. This added capacity required custom brackets to be designed. These brackets are CNC machined, in house at Advanced Autosports. Should you ever need them, these brackets are available separately. Both the upper and lower mounts use the factory rubber isolators to prevent damage. The upper mounts are the factory mounts and allows your hood prop rod to be used normally.

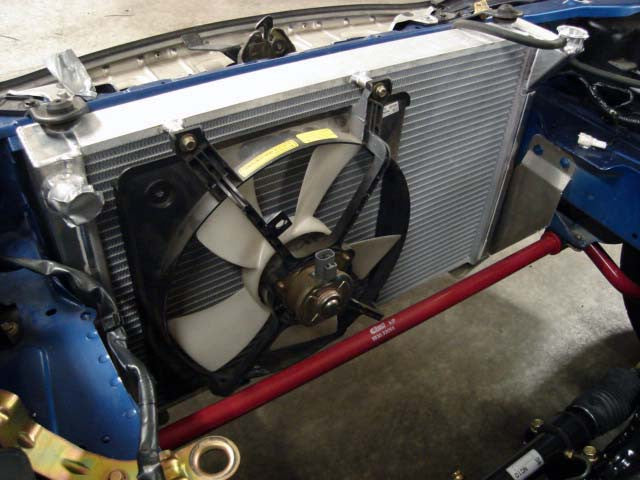

The filler neck is located on the passenger side and will use your existing overflow tube and radiator cap. Advanced Autosports does recommend a new high pressure cap. The lower radiator hose may need to be cut on certain applications. No need for a special upper radiator hose. Your stock upper hose will work with the included extension tube. You will need to remove the thermostat housing and flip it upside down. The stock radiator cooling fan (drivers side) mounts properly without any modification. This radiator is NOT designed for use with air conditioning.

"The radiator was great at the Kansas Majors. It was 102 outside and I stayed under 200 unless drafting. I Won!" -Chris Halderman owner of X-Factor Racing, Texas

** Flat rate shipping does not apply to radiators. Please call 608.313.1230 to get a quote on shipping.
